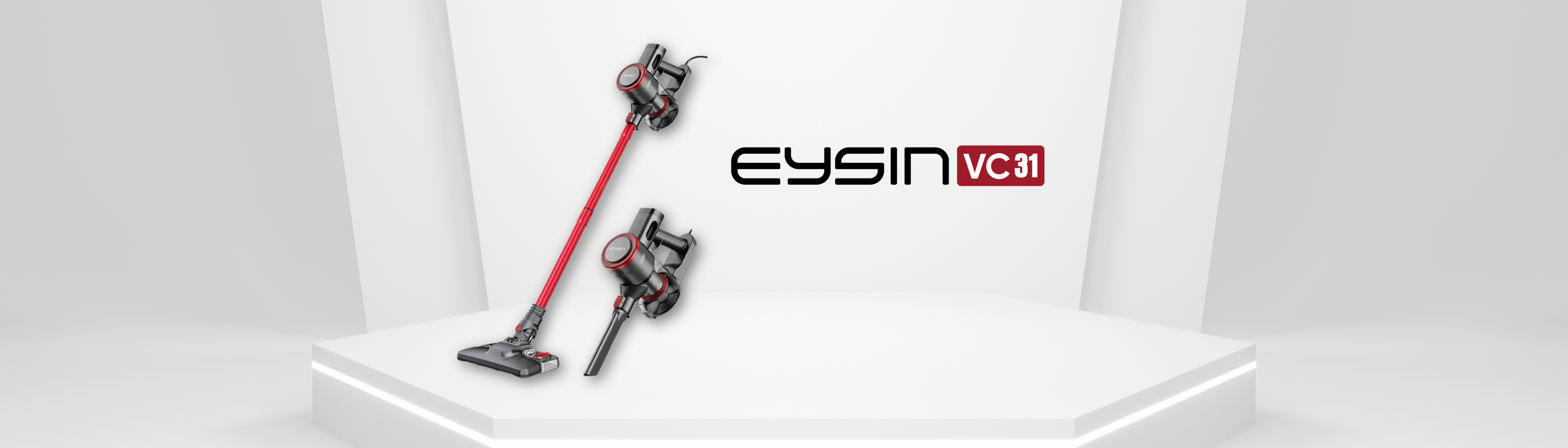

EYSIN VC31 2-in-1 Vacuum & Mop – User Manual

The EYSIN VC31 is a versatile cleaning solution combining powerful vacuuming and efficient mopping functionalities. With a robust 20,000Pa suction power and a dual filtration system, it ensures thorough cleaning across various surfaces.

📦 What’s in the Box

  • EYSIN VC31 Main Unit

  • Dust Collection Cup

  • HEPA Filter

  • Mop Attachment

  • User Manual

🛠️ First-Time Setup

  1. Unpack the Unit: Carefully remove all packaging materials and ensure all components are present.

  2. Assemble Components: Attach the mop pad to the main unit if mopping functionality is desired.

  3. Check Filters: Ensure the HEPA filter is properly installed.

  4. Power Connection: Plug the unit into a standard 220V power outlet.

🧽 Operating Instructions

1. Preparation:

  • Ensure the surface to be cleaned is dry.

  • Remove any large debris manually.

2. Operation:

  • Press the power button to turn on the device.

  • Gently glide the vacuum cleaner over the surface, allowing the suction and mop pad to effectively clean.

  • For optimal results, move the device slowly to ensure thorough cleaning.

3. Post-Cleaning:

  • Turn off the device and unplug it from the power source.

  • Empty the dust collection cup and clean the filters as needed.

🧼 Cleaning and Maintenance

  • Dust Collection Cup: Empty and rinse with warm soapy water after each use. Dry thoroughly before reassembling.

  • HEPA Filter: Clean every two weeks by gently tapping to remove dust. Replace every 3-6 months or as needed.

  • Mop Pad: Remove and wash the mop pad after each use. Ensure it is completely dry before reattaching.

  • Exterior: Wipe with a damp cloth. Do not immerse the main unit in water.

Safety Tips:

  • Always unplug the device before cleaning or maintenance.

  • Do not use the vacuum cleaner on wet surfaces unless using the mopping function.

⚠️ Safety Precautions

  • Do not operate the appliance with a damaged cord or plug.

  • Keep hands and utensils away from moving parts.

  • Do not use the appliance outdoors.

  • Unplug the unit when not in use and before cleaning.

  • Do not immerse the motor unit in water or any other liquid.

🛠️ Troubleshooting

Issue Possible Cause Solution
Appliance not working Not plugged in Plug into a functioning outlet
  Dust collection cup not secured Ensure cup is properly attached
Unusual noise or vibration Loose parts Check and secure all components
Poor performance Filters clogged Clean or replace filters

📐 Technical Specifications

  • Model: EYSIN VC31

  • Voltage: 220V

  • Power: 500W

  • Suction Power: 20,000Pa

  • Corded/Cordless: Corded

  • HEPA Filter: Yes

  • Mop Pad: Washable
