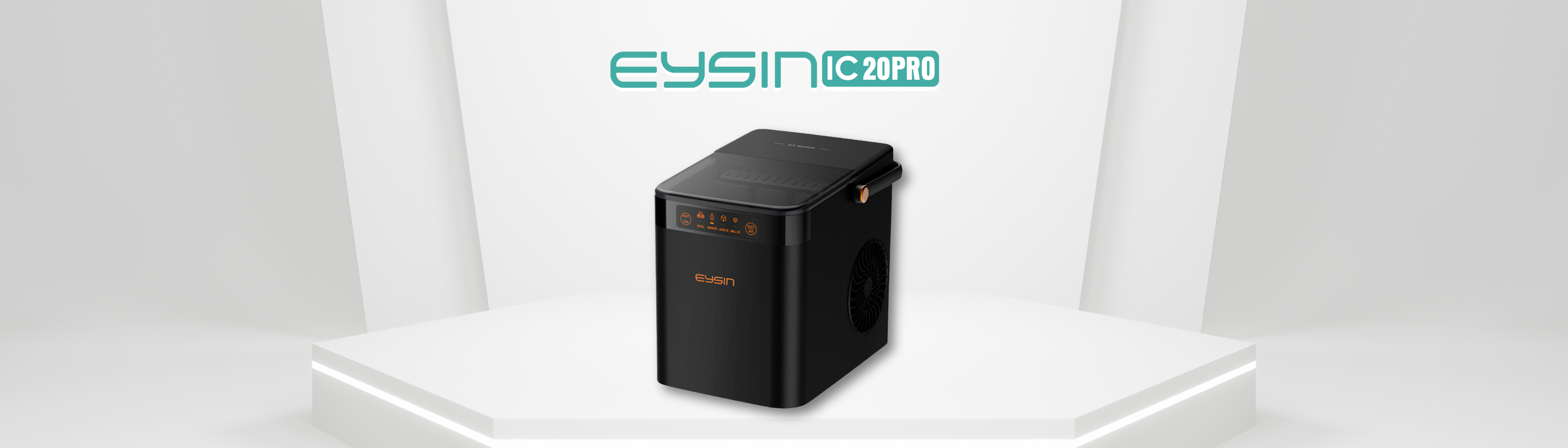

🧊 EYSIN IC20 PRO Automatic Ice Maker – User Manual

The EYSIN IC20 PRO is a compact, portable ice maker designed for quick and efficient ice production. With selectable ice cube sizes and user-friendly controls, it’s ideal for home use, small businesses, or on-the-go needs.

📦 What’s in the Box

  • EYSIN IC20 PRO Ice Maker

  • Removable Ice Basket

  • Ice Scoop

  • User Manual

🛠️ First-Time Setup

  1. Unpack the Unit: Remove all packaging materials and ensure all components are present.

  2. Clean Before Use: Wipe the interior with a soft cloth dampened with warm water. Rinse and dry thoroughly.

  3. Positioning: Place the ice maker on a flat, stable surface away from direct sunlight and heat sources. Ensure at least 15 cm of clearance on all sides for proper ventilation.

  4. Power Connection: Plug the unit into a standard 220V-240V outlet. Allow the refrigerant to settle for at least 2 hours before first use..

💡 Operating Instructions

  1. Add Water:

    • Open the top cover and remove the ice basket.

    • Fill the water reservoir with potable water up to the “MAX” line.

    • Replace the ice basket and close the lid.

  2. Select Ice Cube Size:

    • Use the “SELECT” button to choose between small or large ice cubes.

  3. Start Ice Making:

    • Press the “ON/OFF” button to begin the ice-making cycle.

    • Each cycle takes approximately 6 to 13 minutes, depending on the selected size and ambient temperature.

  4. Indicators:

    • “ADD WATER”: Illuminates when the water reservoir is empty.

    • “ICE FULL”: Illuminates when the ice basket is full.

  5. Collecting Ice:

    • Once the “ICE FULL” indicator is on, remove the ice basket and use the provided scoop to collect the ice.

🧼 Cleaning and Maintenance

  • Regular Cleaning:

    • Turn off and unplug the unit.

    • Remove the ice basket and drain any remaining water using the drain plug at the bottom.

    • Clean the interior with a soft cloth and mild detergent.

    • Rinse thoroughly and dry before next use.

  • Storage:

    • If not in use for an extended period, ensure the unit is clean and dry.

    • Store in a cool, dry place

⚠️ Safety Precautions

  • Use only potable water in the reservoir.

  • Do not operate the unit if the power cord is damaged.

  • Keep the appliance away from heat sources and direct sunlight.

  • Ensure the unit is on a stable surface during operation.

  • Do not immerse the unit in water or any other liquid

🛠️ Troubleshooting

Issue Possible Cause Solution
“ADD WATER” indicator is on Water reservoir is empty Add water to the reservoir
“ICE FULL” indicator is on Ice basket is full Remove ice from the basket
Ice cubes are sticking Ice-making cycle too long Select smaller ice cube size
No ice production High ambient or water temperature Ensure room temp is below 32°C and water temp between 8°C-32°C

📐 Technical Specifications

  • Model: EYSIN IC20 PRO

  • Voltage: 220V-240V~ / 50/60Hz

  • Power Consumption: 105W

  • Dimensions: 210 x 285 x 266 mm

  • Ice Production: 8 pieces per 7 minutes

  • Refrigerant: R600a
